Collision Avoidance System Integration in 30 Ton Overhead Crane Design

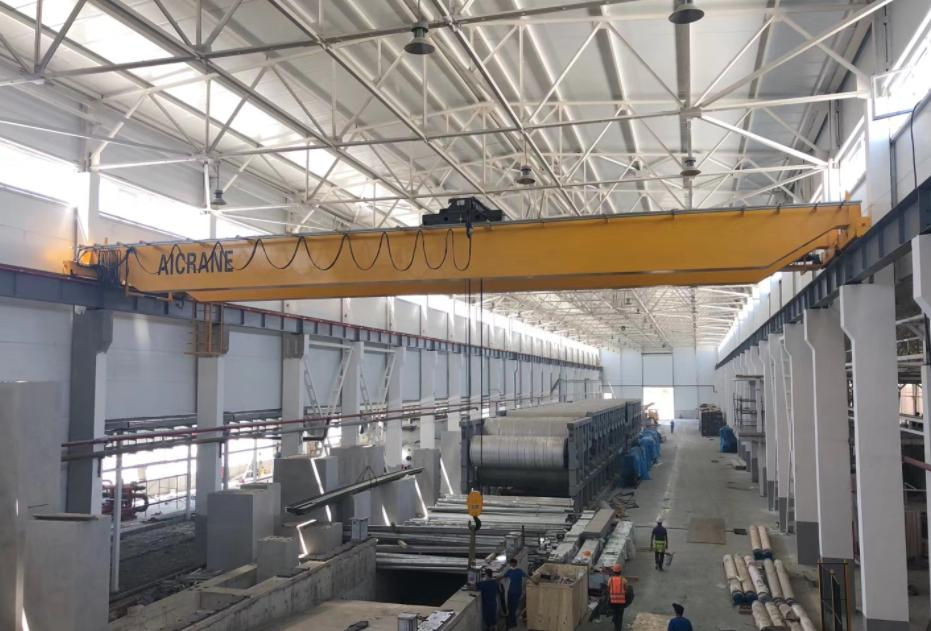

In modern industrial settings, 30 ton overhead cranes are critical tools for handling heavy loads safely and efficiently. As operational demands increase, so does the complexity of crane systems and the potential risks associated with collisions - whether between cranes, with infrastructure, or with personnel. To mitigate these risks, the integration of Collision Avoidance Systems (CAS) into overhead crane design has become a vital advancement.

This article explores the importance of collision avoidance, the technical aspects of system integration, the benefits, and design considerations specific to 30 ton overhead cranes.

1. The Need for Collision Avoidance in Overhead Cranes

Overhead cranes typically operate in environments such as factories, warehouses, steel mills, and shipyards - where multiple cranes may operate simultaneously in confined spaces. Collisions can cause:

• Equipment damage, leading to costly repairs and downtime.

• Load instability, increasing the risk of dropped loads.

• Workplace injuries or fatalities.

• Production delays affecting overall operational efficiency.

Traditional safety measures rely heavily on operator skill, visual cues, and procedural rules. However, human factors such as fatigue, distractions, and limited visibility increase collision risk. This has driven the adoption of automated collision avoidance technologies.

2. What is a Collision Avoidance System?

A Collision Avoidance System (CAS) is an intelligent system designed to detect and prevent potential collisions by:

• Continuously monitoring the position and movement of cranes, loads, and surrounding obstacles.

• Predicting possible collision trajectories.

• Automatically alerting operators or intervening by controlling crane movements.

In a 30 ton overhead crane context, CAS ensures that heavy lifts and crane travel paths remain clear and safe, optimizing workflow without compromising safety.

3. Components of a Collision Avoidance System

Typical CAS components integrated into a 30 ton overhead crane include:

3.1 Sensors and Detection Devices

• Radar sensors: Detect obstacles and other cranes by emitting radio waves.

• Lidar (Light Detection and Ranging): Offers high-resolution 3D mapping to identify objects and measure distances.

• Ultrasonic sensors: Used for short-range detection around crane structure.

• Cameras: Provide visual feedback and can be coupled with computer vision algorithms.

• Load position sensors: Track the hook and load position in real time.

3.2 Communication Network

• Wireless or wired communication connects sensors, controllers, and operator interfaces.

• Ensures data transmission with minimal latency.

3.3 Control Unit

• Central processor runs collision prediction algorithms.

• Interfaces with crane control systems to enable intervention or warnings.

3.4 Operator Interface

• Displays real-time alerts and guidance.

• Allows operator override and manual control.

• May include audible alarms, indicator lights, or touchscreen panels.

4. Integration of CAS into 30 Ton Overhead Crane Design

Integrating CAS into a 30 ton overhead crane involves both hardware and software considerations from the design stage.

4.1 Structural and Mechanical Integration

• Sensor placement must provide unobstructed detection zones.

• Mounting brackets and protective housings are designed to withstand vibration, dust, and impacts.

• Electrical wiring must be routed safely through the crane’s structure without interfering with moving parts.

• Power supply requirements for CAS components are factored into the overall electrical design.

4.2 Control System Integration

• The crane’s Programmable Logic Controller (PLC) or Industrial PC integrates CAS software.

• Real-time feedback from sensors is processed for collision prediction.

• Safety logic prioritizes crane commands: emergency stops, speed reductions, or path modifications override manual commands when needed.

• Integration with other automation systems, such as anti-sway controls or automated trolley movement, enhances safety.

4.3 Software Algorithms

• Predictive modeling anticipates potential collision based on current trajectories.

• Geofencing defines restricted zones where crane travel is limited or prohibited.

• Dynamic path planning adjusts crane movement to avoid hazards.

5. Benefits of Collision Avoidance System Integration

Incorporating CAS into 30 ton overhead cranes delivers multiple benefits:

5.1 Enhanced Safety

• Prevents collisions between multiple overhead bridge cranes operating simultaneously.

• Avoids crane-to-structure impacts that can destabilize loads.

• Protects personnel by alerting operators before dangerous proximities are reached.

5.2 Increased Productivity

• Operators gain confidence and can focus on precise load handling.

• Reduced downtime due to accident prevention and minimized damage.

• Enables tighter scheduling and increased crane utilization in crowded facilities.

5.3 Extended Equipment Lifespan

• Minimizes mechanical wear caused by impacts.

• Protects critical components like girders, wheels, and hoists.

6. Challenges in CAS Integration for 30 Ton Cranes

Despite benefits, CAS integration presents some challenges:

6.1 Sensor Reliability in Harsh Environments

• Factories with dust, smoke, or extreme temperatures require rugged sensors.

• Sensor cleaning and maintenance become crucial for accuracy.

6.2 System Latency and Real-Time Response

• Collision prediction requires rapid data processing.

• Communication delays can reduce effectiveness.

6.3 Operator Training and Acceptance

• Operators must understand CAS alerts and procedures.

• Overreliance on automation can lead to complacency.

6.4 Cost Considerations

• Initial investment in CAS hardware and software can be significant.

• However, cost is often offset by reduced downtime and accident costs.

7. Design Best Practices for CAS-Enabled 30 Ton Overhead Cranes

For effective CAS integration, the following best practices are recommended:

7.1 Early Design Integration

• Incorporate CAS requirements at the initial design stage, not as an afterthought.

• Ensure space allocation and wiring routes are planned for CAS hardware.

7.2 Redundancy and Fail-Safe Features

• Dual sensors and backup power ensure continuous operation.

• Failsafe mechanisms to stop crane safely if CAS components fail.

7.3 Customizable Alert Zones

• Define adjustable detection zones based on operational conditions.

• Allow operators to configure alert sensitivity.

7.4 Compatibility with Existing Controls

• CAS should seamlessly integrate with existing crane control systems.

• Avoid interference with manual override and emergency stop functions.

8. Real-World Applications and Case Studies

Many industrial facilities have reported positive outcomes after CAS integration in 30 ton overhead cranes:

• Steel fabrication plants have reduced crane-to-crane collisions by over 90%.

• Automotive assembly lines improved throughput by enabling closer crane operations.

• Ports and logistics hubs minimized equipment downtime, saving significant repair costs.

These successes highlight CAS as a worthwhile investment for mid-capacity cranes.

9. Future Trends in Collision Avoidance for Overhead Cranes

Looking ahead, several trends are shaping CAS evolution:

• AI and Machine Learning: Systems that learn crane operator behavior and optimize collision avoidance dynamically.

• Integration with IoT: Real-time remote monitoring and predictive maintenance.

• Augmented Reality (AR): Providing operators with enhanced situational awareness.

• Fully Automated Cranes: CAS will be a foundational technology for autonomous material handling.

Conclusion

Integrating a Collision Avoidance System into the design of a 30 ton overhead crane represents a significant leap forward in operational safety, productivity, and equipment longevity. By combining advanced sensors, real-time control, and intelligent software, CAS technology mitigates collision risks inherent in busy industrial environments.

Successful integration requires thoughtful planning from the early design stages, robust hardware and software solutions, and operator training. Although challenges exist, the benefits in terms of accident prevention, cost savings, and operational efficiency make CAS an essential feature for modern 30 ton overhead cranes.

As industries continue to prioritize safety and automation, collision avoidance systems will become standard components, helping to create safer and smarter lifting environments.
