Limit Switches and Safety Interlocks in 100 Ton Bridge Crane Components: Ensuring Safe and Efficient Operation

  • charlespsnow
  • 10 hours ago
  • 4 min read

When dealing with high-capacity lifting equipment such as a 100-ton bridge crane, safety and precision are not optional—they are essential. Among the numerous components that ensure the safe and efficient operation of such heavy-duty equipment, limit switches and safety interlocks play a critical role. These safety mechanisms serve as intelligent sentinels that monitor crane operations and automatically prevent dangerous or damaging movements, protecting both the crane system and human operators.

This article explores the function, types, design considerations, and integration of limit switches and safety interlocks in 100-ton bridge cranes, highlighting how these components are essential to maintaining operational safety and reliability.

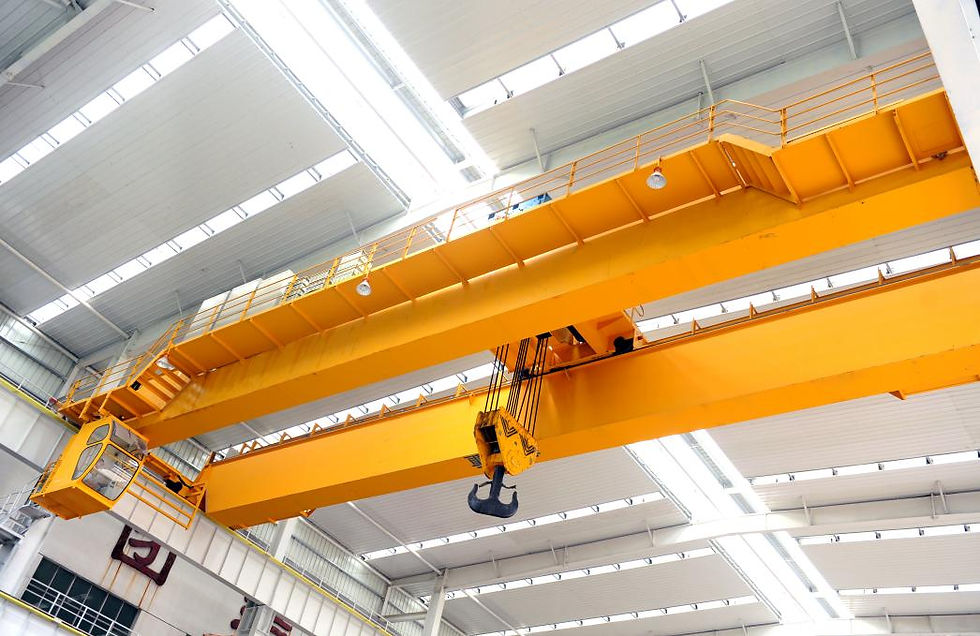

100 ton bridge crane


Understanding the Role of Limit Switches

Limit switches are electromechanical devices used to detect the physical position or movement of a crane component, such as the hoist, trolley, or bridge. They operate by making or breaking electrical circuits when a moving part of the crane reaches a predetermined point.

In a 100 ton bridge crane, these switches are primarily used to:

  • Prevent over-travel of the hoist, trolley, or bridge

  • Control end limits of movement for various components

  • Act as triggers for emergency stops

  • Integrate with programmable logic controllers (PLCs) or crane control systems

Types of limit switches used in bridge cranes include:

  1. Hoist Upper and Lower Limit Switches: These prevent the hook block from being raised too high or lowered too low, avoiding collision with the drum or over-extension of the wire rope.

  2. Trolley Travel Limit Switches: Installed at each end of the bridge girder, they prevent the trolley from crashing into the end stops.

  3. Bridge Travel Limit Switches: These are mounted at the runway end stops and are crucial in avoiding structural impact as the crane bridge nears the end of its travel path.

  4. Load Limit Switches (Overload Protection): These are sometimes integrated with load sensors and used to detect excessive lifting loads, triggering warnings or halting the hoisting function.

The Importance of Safety Interlocks

Safety interlocks are systems designed to prevent the crane from operating under unsafe conditions. Unlike basic limit switches, interlocks are more complex and integrated into the crane’s logic and safety systems. They work by “interlocking” two or more actions, ensuring that one operation cannot occur unless another condition is met.

In a 100-ton bridge crane, safety interlocks serve purposes such as:

  • Preventing simultaneous movement that could destabilize the load

  • Disabling crane motion during maintenance or inspection

  • Preventing crane operation if access doors or control panels are open

  • Blocking hoisting motion when load exceeds rated capacity

Safety interlocks can be implemented using mechanical locks, proximity sensors, or electronic control systems, depending on the complexity of the crane and the operational environment.


bridge crane 100 ton

Integration into Crane Design

In large-capacity cranes such as a 100-ton bridge crane, the integration of limit switches and safety interlocks is carefully planned during the design phase. The goal is to ensure that the crane can perform all required lifting tasks safely while automatically stopping any action that might endanger the equipment or operators.

Key areas where integration occurs include:

  • Control Systems: Modern bridge cranes use PLCs or variable frequency drives (VFDs) to control movement. Limit switches and interlocks send real-time data to these systems, enabling precise control and automatic responses.

  • Redundancy and Fail-Safe Design: For high-risk operations, redundant limit switches are often installed to serve as a backup in case one fails. Safety interlocks may also be designed to default to a locked or off position in the event of power loss or system fault.

  • Maintenance Access Points: Safety interlocks are often found in maintenance hatches or service doors, disabling operation when these panels are open, which protects workers performing inspections or repairs.

Standards and Regulatory Requirements

Several industry standards govern the design and use of limit switches and safety interlocks in overhead cranes. Adherence to these standards is crucial for compliance and operational safety.

Relevant standards include:

  • ASME B30.2 – Overhead and Gantry Cranes (Top Running Bridge, Single or Multiple Girder, Top Running Trolley Hoist)

  • OSHA 1910.179 – Regulations covering inspection, maintenance, and operation of overhead and gantry cranes

  • IEC 60204-32 – Electrical equipment for hoisting machines

  • ISO 13849-1 – Safety of machinery, focusing on safety-related parts of control systems

These standards specify not only when and where limit switches should be installed but also the type of interlocks required for safe operation.

Benefits of Proper Implementation

The benefits of implementing a well-designed system of limit switches and safety interlocks in a 100-ton bridge crane are numerous:

  1. Enhanced Safety: Prevents accidents due to over-travel, overload, and unauthorized access.

  2. Reduced Downtime: Prevents mechanical damage that could lead to extensive repair or replacement.

  3. Compliance: Helps meet legal and safety standards, avoiding fines or shutdowns.

  4. Operational Efficiency: Minimizes human error and allows for smoother, more automated control.

  5. Longer Equipment Life: Avoids mechanical strain and collision by stopping operations at preset safe limits.

Challenges and Considerations

While these systems are indispensable, several challenges must be addressed:

  • Environmental Factors: In dusty, hot, or corrosive environments, the reliability of mechanical limit switches can decline. In such cases, sealed or non-contact (e.g., inductive) sensors may be used.

  • System Calibration: Proper calibration during installation and regular recalibration are necessary to ensure switches and interlocks function as intended.

  • Wiring and Connectivity: Faulty wiring or loose connections can render limit switches ineffective, leading to possible hazards.

  • Maintenance and Testing: Periodic inspection and functional testing of limit switches and interlocks are required to confirm continued performance.

Emerging Technologies

As industrial automation advances, the trend is moving toward smart limit switches and digital safety interlocks with diagnostics and remote monitoring features. These components can:

  • Send real-time status alerts to central control systems

  • Trigger preventive maintenance notifications

  • Integrate with Industrial Internet of Things (IIoT) platforms

These innovations offer greater flexibility and data-driven safety, especially for critical lifting applications such as steel production, shipbuilding, and heavy manufacturing where 100-ton cranes are commonly used.

Conclusion

In a 100-ton bridge crane system, limit switches and safety interlocks are not just optional accessories—they are mission-critical components that ensure safe, compliant, and efficient operation. By preventing over-travel, overload, and unsafe operation conditions, these systems protect both equipment and personnel.

Bridge crane manufacturers and operators must give proper attention to selecting, installing, and maintaining these safety devices to optimize crane performance and workplace safety. With the evolution of smart systems and increasing safety expectations, the role of limit switches and safety interlocks will only become more central to the future of heavy lifting technology.
