Reinforcement Techniques for Long-Span 50-Ton Overhead Cranes

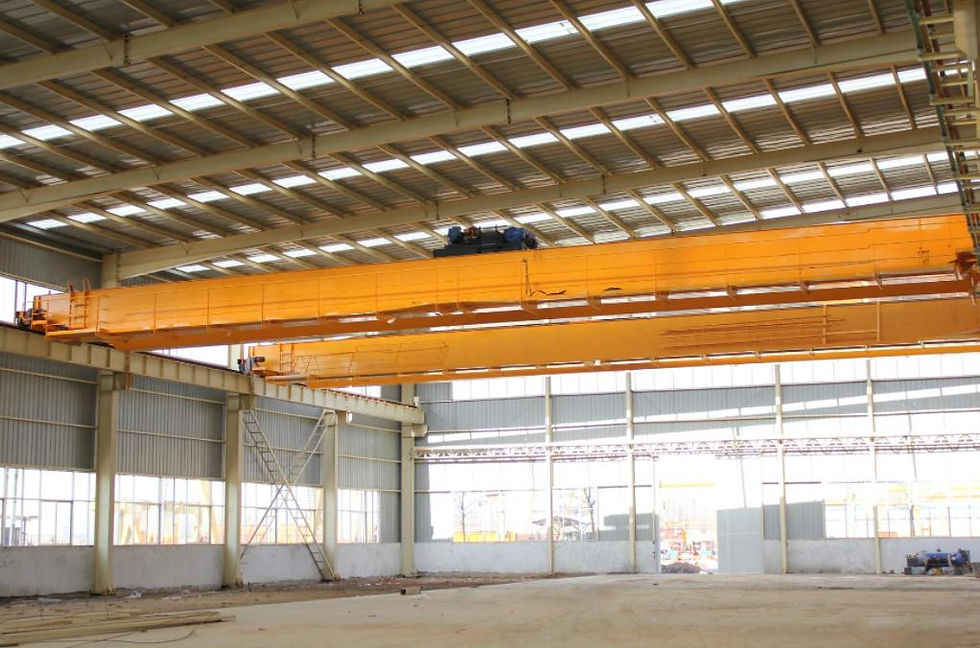

Overhead cranes are indispensable in heavy industries, offering efficient and precise handling of large, bulky, and heavy materials. Among these, 50-ton long-span overhead cranes are widely used in steel plants, shipyards, power stations, and large-scale manufacturing facilities. However, designing and maintaining long-span cranes capable of handling such heavy loads presents unique structural challenges. To ensure safe operation, durability, and operational efficiency, reinforcement techniques are essential. This article delves into the structural strategies, materials, and design methods used to reinforce long-span 50-ton overhead cranes.

1. Challenges of Long-Span 50-Ton Cranes

Before discussing reinforcement techniques, it is crucial to understand the challenges associated with long-span 50 ton overhead cranes carrying heavy loads:

1. Deflection and bending: Longer spans tend to sag or bend under heavy loads, reducing operational precision and potentially causing damage to both the crane and the load.

2. Torsional stress: As spans increase, the crane girders are more susceptible to twisting forces during hoist movement or uneven loading.

3. Dynamic loads: Moving heavy loads over a long span generates additional dynamic stresses, including acceleration and deceleration forces that impact the crane structure.

4. Vibration and resonance: Long spans are more prone to vibrations induced by trolley motion or environmental factors like wind.

5. Weight limitations of girders: Standard steel girders may not provide sufficient strength or rigidity for spans exceeding 25–30 meters with a 50-ton load.

These challenges necessitate structural reinforcement techniques to ensure stability, safety, and longevity.

2. Using Box Girders for Enhanced Rigidity

A common and highly effective reinforcement technique for long-span cranes is the use of box girders instead of traditional I-beams. Box girders are hollow, rectangular steel structures that provide superior torsional stiffness and bending resistance compared to I-girders of the same weight.

Benefits of box girders:

• Greater resistance to bending under heavy loads

• Reduced lateral and vertical deflection across the span

• Enhanced stability when handling off-center or asymmetrical loads

• Compatibility with top-mounted hoists, which reduce the required lifting height

In long-span 50-ton cranes, the use of box girders significantly minimizes deflection and vibration, improving operational accuracy.

3. Increasing Girder Depth

Girder depth plays a critical role in the structural strength of long-span cranes. Increasing the vertical height of the girder improves the moment of inertia, which in turn reduces deflection and bending. For a 50-ton crane with a span of 30 meters or more, deep girders are often employed, sometimes combined with box girder construction for maximum rigidity.

Key considerations:

• Optimal girder depth should balance weight and structural strength. Excessive depth may lead to higher material costs and installation challenges.

• Reinforced cross-sections, such as flanges with thicker plates, can enhance the girder’s load-bearing capacity without excessively increasing weight.

4. Cross Bracing and Web Stiffeners

Long-span girders are prone to lateral-torsional buckling, especially under heavy lifting conditions. Cross bracing and web stiffeners are structural reinforcements that address this issue:

1. Cross Bracing: Diagonal or X-shaped bracing between girders reduces lateral displacement and enhances torsional rigidity. It also distributes loads more evenly across the span.

2. Web Stiffeners: Vertical stiffeners welded to the girder web prevent local buckling caused by concentrated loads from the hoist or trolley. They are particularly effective in areas of high stress, such as near trolley positions or load attachment points.

These reinforcements are critical for 50-ton long-span cranes, where the load may not always be perfectly centered.

5. Reinforced End Carriages

The end carriages of long-span cranes must support the full weight of the bridge and the load while moving along the runway rails. For heavy 50-ton double girder cranes, standard end carriages may be insufficient. Reinforcement techniques include:

• Use of multiple wheels per side: Increasing the number of wheels distributes the weight over a larger area of the runway, reducing stress concentration.

• Strengthened end frames: Heavier and thicker steel plates, gussets, and weld reinforcements increase the rigidity of end carriages.

• Precision wheel alignment: Reinforced end carriages help maintain proper alignment with the runway, reducing wear and enhancing operational safety.

6. Trolley Reinforcement

The hoist trolley is a critical component in load transfer. For long-span 50-ton cranes, trolley reinforcement ensures stability and prevents excessive deflection:

• Double-girder trolleys: Trolleys that run on both girders increase load distribution and reduce local bending.

• Heavy-duty wheels and bearings: Reinforced wheels with higher load ratings reduce deformation and increase durability.

• Optimized trolley frame design: Reinforced steel frames and bracing minimize torsional stress during trolley acceleration, deceleration, and load handling.

7. Material Selection and High-Strength Steel

Reinforcement is not only about design geometry but also about material selection. Using high-strength steel for girders, end carriages, and trolleys improves load-bearing capacity without significantly increasing weight. Common materials include:

• Q345 or equivalent steel: Offers high tensile strength and good weldability for heavy-duty industrial cranes.

• Advanced alloy steels: Used in critical areas to resist fatigue, buckling, and torsion.

Material reinforcement complements structural design techniques, ensuring that long-span cranes maintain performance under heavy loads.

8. Pre-Stressed Girders

For extremely long spans, some manufacturers use pre-stressed girders, where the steel is subjected to controlled tension before installation. This technique counteracts bending under operational loads, minimizing deflection and enhancing rigidity. Pre-stressing is particularly beneficial for 50-ton cranes with spans exceeding 35–40 meters, where conventional reinforcement alone may not be sufficient.

9. Anti-Sway Mechanisms

Structural reinforcement also extends to anti-sway systems. Long-span cranes are prone to lateral sway, which can introduce additional stresses on the girders and trolley. Reinforcement techniques include:

• Guide rollers along girders: Reduce lateral movement and distribute forces evenly.

• Lateral stabilizers or dampers: Reduce vibration and oscillation during high-speed trolley operation.

• Structural tie rods: Connect the bridge to the runway or building framework for additional rigidity.

These measures reduce stress cycles and extend the operational lifespan of the crane.

10. Maintenance and Inspection Reinforcement

Finally, structural reinforcement also involves maintenance strategies. Regular inspection and preventive reinforcement measures can prolong the life of a long-span 50-ton crane:

• Welded gussets and plate reinforcements in high-stress areas

• Re-tightening and replacing fasteners at girder joints

• Regular alignment checks for end carriages and trolley tracks

• Non-destructive testing (NDT) of critical welds to prevent fatigue failures

By combining physical reinforcement with systematic maintenance, operators can ensure safe and reliable operation of long-span cranes for decades.

11. Conclusion

Long-span 50-ton overhead cranes present unique structural challenges due to their size, load capacity, and operational demands. Effective reinforcement techniques are essential to ensure safety, reduce deflection, enhance rigidity, and prolong service life. Key strategies include the use of box girders, deep girders, cross bracing, web stiffeners, reinforced end carriages and trolleys, high-strength materials, pre-stressed girders, and anti-sway mechanisms. Together, these measures enable long-span cranes to handle heavy loads efficiently and safely, providing reliable performance for demanding industrial applications.

Investing in proper structural reinforcement not only ensures operational safety but also minimizes downtime, reduces maintenance costs, and enhances the overall productivity of heavy-duty material handling systems.
