Types of Lifting Attachments for Gantry Cranes and Their Roles

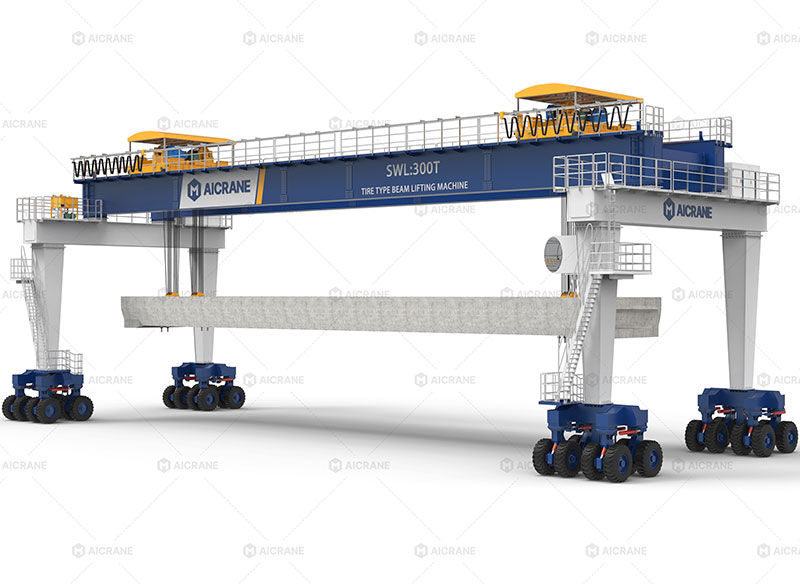

Gantry cranes are indispensable in modern industrial operations. From steel mills to shipyards and precast concrete plants, these cranes serve as vital tools for lifting, moving, and positioning heavy loads. However, the efficiency and safety of gantry crane operations are not solely determined by the crane itself but also by the lifting attachments used. Lifting attachments - also called lifting accessories - play a crucial role in connecting the crane to the load, ensuring stability, and adapting to different shapes and weights of materials. Understanding the types of lifting attachments and their respective roles is essential for optimizing crane operations, preventing accidents, and increasing productivity.

1. Introduction to Lifting Attachments

Lifting attachments are devices or accessories attached to the crane hook to secure, balance, and lift a load. They serve as intermediaries between the crane and the cargo, allowing the crane to handle materials of various shapes, sizes, and weights safely. Common lifting attachments include slings, shackles, spreader beams, lifting magnets, clamps, and specialized hooks. Each attachment type is designed for specific applications and load characteristics.

The selection of appropriate lifting attachments depends on several factors:

• Load Type: Shape, weight, and material properties.

• Load Stability: Center of gravity and potential shifting during lifting.

• Lifting Method: Single-point lift, multi-point lift, or balanced lifting.

• Safety Requirements: Compliance with industry standards and regulations.

Using the wrong attachment can lead to accidents, damage to equipment, or deformation of the load. Therefore, understanding the roles of different lifting attachments is critical.

2. Slings

Slings are among the most commonly used lifting attachments for gantry crane for sale. They are flexible connectors that wrap around or hook onto the load. Slings come in different materials and configurations:

a. Wire Rope Slings

Wire rope slings are made from high-strength steel cables and are ideal for heavy-duty lifting. They are durable, resistant to abrasion, and suitable for lifting rough or sharp-edged materials. Wire rope slings are often used in steel production, shipbuilding, and construction industries.

Roles:

• Distribute the load evenly.

• Provide secure lifting for irregular or heavy items.

• Allow for multi-leg configurations for balanced lifting.

b. Chain Slings

Chain slings are made from alloy steel links and are extremely strong, making them suitable for very heavy loads. They are often preferred in harsh environments due to their resistance to heat and cutting.

Roles:

• Handle extremely heavy or hot loads.

• Provide adjustable length for different lifting scenarios.

• Offer high resistance to abrasion and wear.

c. Synthetic Web Slings

Synthetic slings are made from polyester, nylon, or other synthetic fibers. They are lightweight, flexible, and less likely to damage delicate surfaces compared to wire or chain slings.

Roles:

• Protect sensitive surfaces during lifting.

• Reduce overall lifting weight due to lightness.

• Provide elasticity that helps absorb shock loads.

3. Shackles

Shackles are U-shaped metal connectors secured with a pin or bolt. They are often used to attach slings, hooks, or other lifting devices to the crane or load.

Roles:

• Connect lifting accessories securely.

• Serve as pivot points for multi-leg sling arrangements.

• Ensure safe attachment for loads with lifting points that are not directly hook-compatible.

Shackles come in various types, such as anchor shackles, chain shackles, and screw pin shackles, each with specific load-bearing capacities and operational purposes.

4. Hooks

Hooks are the primary attachment point on a gantry crane. Beyond the standard crane hook, specialized lifting hooks are available:

a. Grab Hooks

Grab hooks are designed to engage with chains or slings and prevent slipping. They are often used in construction and steel handling.

b. Self-Locking Hooks

These hooks automatically close under load, reducing the risk of accidental disengagement. They are commonly used in environments requiring high safety levels.

Roles:

• Facilitate direct lifting of loads without additional rigging.

• Enhance safety by securing slings or chains.

• Adapt to different load configurations for efficient handling.

5. Spreader Beams

Spreader beams are rigid bars attached to the crane hook with slings or chains at either end. They distribute the lifting force over multiple points of the load, reducing stress and deformation.

Roles:

• Enable balanced lifting of long or fragile loads, such as steel plates or concrete beams.

• Reduce bending, twisting, or damage during lifting.

• Allow for multi-point lifting when single-point lifts are inadequate.

Spreader beams are highly customizable in length and capacity to match the specific needs of industrial operations.

6. Lifting Clamps

Lifting clamps are mechanical devices that grip the load securely. They are designed for lifting materials like steel plates, pipes, or beams without the need for slings.

a. Plate Clamps

These clamps grip steel or metal plates vertically or horizontally, ensuring a secure lift without slippage.

b. Pipe and Cylinder Clamps

Used for lifting round items, these clamps secure pipes, barrels, or cylindrical objects safely.

Roles:

• Ensure secure lifting of objects with smooth or challenging surfaces.

• Prevent damage to sensitive materials.

• Facilitate quick and repeatable lifting operations.

7. Lifting Magnets

Electromagnetic lifting attachments are increasingly popular for handling ferrous materials. They can be attached to the crane and turned on or off to lift and release metal items.

Roles:

• Enable fast lifting and positioning of steel plates, beams, and scrap materials.

• Reduce the need for slings or chains, simplifying rigging.

• Improve efficiency in steel production, scrap yards, and metal fabrication plants.

8. Special Purpose Attachments

Some lifting operations require highly specialized attachments tailored for unique applications. Examples include:

• Beam Clamps for pre-stressed concrete: Used to lift beams without damage.

• Vacuum Lifters: Ideal for lifting glass panels, sheet metal, or other smooth-surface items.

• Rotators and Turnbuckles: Allow rotation or controlled positioning of heavy loads.

Roles:

• Adapt crane operations to specific industrial needs.

• Improve precision and handling efficiency.

• Enhance safety for delicate or irregularly shaped loads.

9. Safety Considerations

Lifting attachments are not just about functionality; safety is paramount. Operators must inspect all attachments before use, ensure proper weight ratings, and follow standard operating procedures. Overloading, using damaged attachments, or selecting inappropriate devices can result in accidents, equipment damage, or costly downtime.

10. Conclusion

Lifting attachments are essential components in gantry crane operations. Their types and roles vary significantly, from simple slings and shackles to complex spreader beams and electromagnetic lifters. Each attachment serves a specific purpose, whether it is securing heavy loads, protecting delicate surfaces, distributing forces, or enabling specialized lifting operations. By understanding the capabilities and proper use of different lifting attachments, industrial operators can enhance safety, efficiency, and productivity in their crane operations.

Selecting the right lifting attachment is as important as choosing the right industrial gantry crane. When used correctly, these attachments make heavy lifting safer, faster, and more precise, ensuring that materials are handled with care and industrial operations run smoothly.
