What Does 50 Ton Gantry Crane Capacity Mean?

When it comes to industrial lifting equipment, one of the most important specifications customers and operators focus on is the capacity of the crane. For a 50 ton gantry crane, the term "50 ton capacity" is often heard and quoted, but what exactly does this mean? Understanding the concept of gantry crane capacity is crucial for selecting the right crane for your lifting tasks, ensuring safety, and optimizing operational efficiency. In this article, we will explore the meaning of a 50 ton gantry crane capacity, factors that affect it, and practical considerations for its use.

Understanding Gantry Crane Capacity

Definition of Crane Capacity

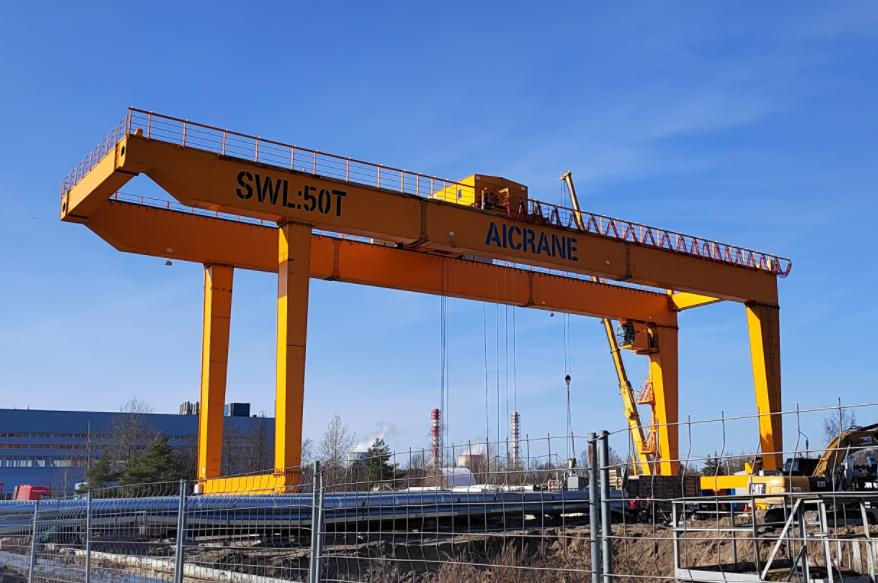

The capacity of a gantry crane refers to the maximum weight the crane is designed and rated to safely lift under specific conditions. For a 50 ton gantry crane, this means the crane can lift loads up to 50 tons (or 50,000 kilograms) safely without risk of mechanical failure or unsafe working conditions.

This rating is determined by the crane manufacturer through engineering design, structural calculations, and rigorous testing. The capacity is often displayed on the crane’s identification plate and load charts for operator reference.

Rated Capacity vs. Actual Capacity

It's important to distinguish between rated capacity and actual capacity:

• Rated Capacity: The official maximum load the crane is designed to lift under ideal conditions. For a 50 ton crane, this is the 50-ton limit.

• Actual Capacity: The real lifting capacity can be influenced by factors such as crane configuration, lifting height, boom length, environmental conditions, and load dynamics. In some situations, the actual safe capacity may be less than the rated capacity.

How Is 50 Ton Capacity Determined?

Engineering and Structural Factors

The capacity of a gantry crane depends on many design factors:

• Structural Strength: The main girder(s), legs, and supporting framework must withstand not only the vertical load but also bending moments, shear forces, and dynamic impacts.

• Hoist and Trolley System: The hoisting mechanism must be rated to lift 50 tons, including the strength of wire ropes, hooks, and drum.

• Runway Rails and Wheels: The rails and wheels must support the crane's load plus its own weight and any dynamic forces during travel.

• Safety Factors: Engineering standards require applying safety factors (usually 1.25 or higher) on top of the rated capacity to ensure durability and safety.

Testing and Certification

Before delivery, cranes undergo load testing, often lifting 125% of the rated load (i.e., 62.5 tons for a 50 ton crane) as a proof load test. This ensures the crane structure and components meet or exceed the design specifications.

What Does 50 Ton Capacity Imply in Practical Use?

Load Limits and Safety

The 50 ton capacity sets the upper limit of load the crane should lift. Operators must never exceed this limit to avoid mechanical failure, accidents, or safety hazards. Even lifting a load close to the limit requires careful handling, as sudden impacts, swinging loads, or uneven weight distribution can impose additional stresses.

Work Conditions Affecting Capacity

While the crane is rated for 50 tons, real-world conditions can reduce the safe lifting capacity:

• Lifting Height: Capacity may reduce with increased lifting height due to mechanical leverage and structural stresses.

• Load Center Distance: If the load’s center of gravity is not aligned under the hook but offset, the effective capacity reduces. For example, lifting long or bulky items creates eccentric loads.

• Environmental Factors: Wind, rain, cold weather, and uneven ground conditions can affect stability and performance.

• Duty Cycle: Frequent lifting or continuous operation may require de-rating the capacity to avoid overheating or wear.

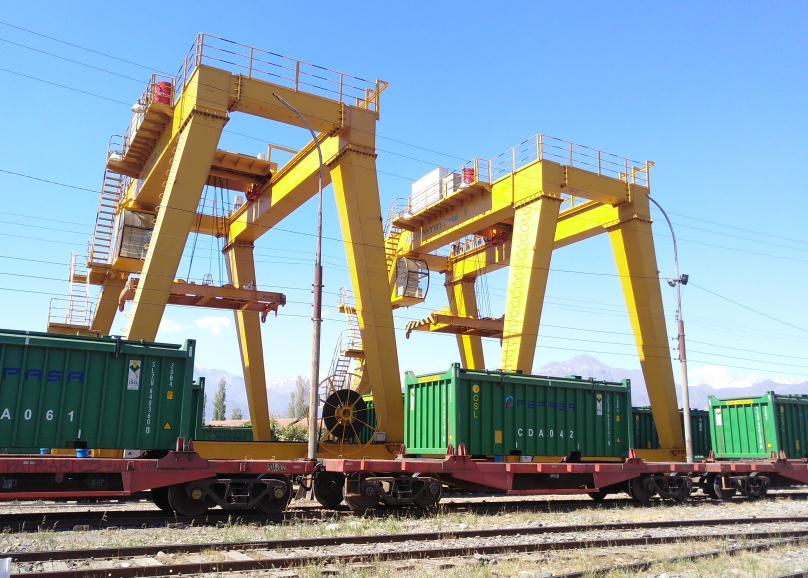

Capacity in Different Gantry Crane Types

There are several types of gantry cranes, such as single girder, double girder, portable, semi-gantry, and full gantry cranes. The 50 ton capacity applies differently depending on design:

• Single Girder 50 Ton Gantry Crane: Less common at this capacity due to structural limits; mostly double girder cranes are used for 50 ton loads.

• Double Girder 50 Ton Gantry Crane: Most typical for this capacity, with enhanced strength and rigidity.

• Semi-Gantry Crane: One side supported by a runway beam, often used for moderate capacity.

• Portable Gantry Crane: Usually for smaller capacities, but custom designs can reach 50 tons.

Selecting the Right 50 Ton Gantry Crane for Your Needs

Assess Your Load Requirements

Understanding the nature of your loads is crucial:

• Weight of Materials: Confirm your heaviest load does not exceed 50 tons.

• Load Shape and Size: Consider the load center and how the load can be rigged safely.

• Lifting Height and Span: Define the needed height clearance and the crane span (distance between legs).

Choose Appropriate Crane Configuration

Depending on your application, different 50 ton gantry crane configurations offer various advantages:

• Fixed Gantry Crane: Ideal for workshops and yards with consistent lifting zones.

• Portable or Mobile Gantry Crane: For flexible lifting across multiple sites or outdoor areas.

• Rubber Tyred Gantry (RTG) Crane: Used mainly in container yards with large spans.

Consider Operational Factors

• Frequency of Use: Heavy continuous use may require cranes with higher duty ratings.

• Environmental Conditions: Outdoor gantry cranes need weather protection features and possibly higher safety margins.

• Control Methods: Ground control, pendant control, or remote control may affect operational safety and efficiency.

Maintenance and Capacity Retention

Maintaining a gantry crane in good condition is vital to ensure it retains its rated 50 ton capacity throughout its service life.

• Regular Inspections: Check structural components, hoists, ropes, and safety devices.

• Load Testing: Periodic load tests confirm the crane's ability to lift its rated load safely.

• Preventive Maintenance: Lubrication, wear part replacement, and electrical system upkeep help prevent capacity loss.

Neglecting maintenance can reduce the crane’s safe working capacity and increase accident risk.

Safety Standards and Regulations

Crane capacity ratings comply with international and national standards such as:

• ISO 4301: Cranes and lifting appliances classification and rating.

• CMAA Specification: Standards for cranes including design and capacity requirements.

• OSHA Regulations: Safety standards for overhead and gantry cranes in the U.S.

Compliance ensures the rated capacity reflects real-world safety requirements.

Common Misunderstandings About Gantry Crane Capacity

50 Ton Capacity Is Not “More Than 50 Tons”

Some may mistakenly believe a 50 ton crane can safely lift slightly over 50 tons. This is false; the rating is a strict maximum under ideal conditions.

Capacity Does Not Equal Payload Weight Alone

The total lifted weight includes the load plus any rigging hardware, lifting slings, and attachments. Always consider the full rigged load.

Capacity Is Not Constant Across All Positions

Due to factors like trolley position, boom angle, or load offset, the actual capacity may vary within the crane’s operational envelope.

Conclusion

The 50 ton capacity of a gantry crane is a critical specification that defines the maximum safe lifting weight the crane is designed for under standard conditions. Understanding what this capacity means in practical terms helps users select the right equipment, ensure safe operations, and maximize efficiency.

When choosing a 50 ton gantry crane, consider not just the weight limit but also how factors such as load geometry, lifting height, environmental conditions, and operational frequency affect the crane’s actual lifting ability. Proper maintenance and adherence to safety standards are essential to keep the crane operating safely at its rated capacity.

If your operations require reliable, efficient lifting of heavy loads up to 50 tons, investing in a properly designed and certified gantry crane - coupled with skilled operators and strict safety practices - is the key to long-term success.
